A healthy catalytic converter cleans up exhaust without calling attention to itself. When it begins to clog, the change is gradual. Power falls off, the engine feels labored, and fuel economy dips for reasons that are not obvious at first. Many drivers chase coils, plugs, and sensors before realizing the exhaust is the real restriction. Knowing the early signs can save you from a tow and prevent damage to parts upstream.
What the Converter Does and Why It Can Restrict Flow

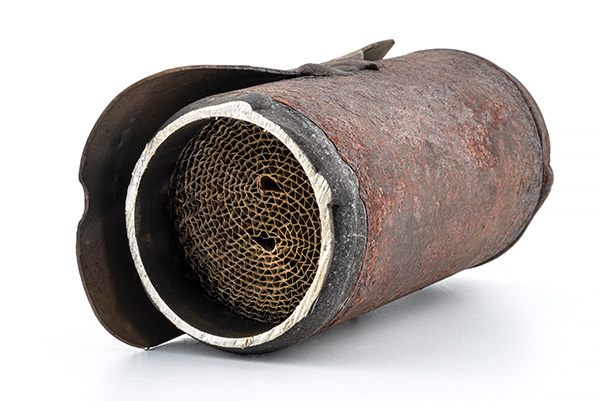

Inside the converter is a ceramic or metallic honeycomb coated with precious metals. Exhaust flows through those tiny passages while chemical reactions reduce harmful gases. Heat, unburned fuel, and age slowly damage the coating and the structure. When the brick melts or breaks apart, passages collapse and the outlet shrinks. The engine now pushes against backpressure, which steals power and raises temperatures in the exhaust system.
Early Symptoms Most Drivers Notice First
Clogging usually shows up as a lack of power under load. The car may rev in park, yet struggle on hills or during highway merges. You might feel a flat spot as the tach climbs, or a hard downshift without the usual acceleration that follows. Fuel economy fades even though your route has not changed. Some drivers report a hot smell after long climbs or a rattling sound from the exhaust at startup. That rattle can be loose pieces of the converter brick moving as the pipe vibrates.
Why Misfires and Fuel Problems Start the Downward Spiral
A converter can only handle so much raw fuel before its coating overheats. Misfires, leaky injectors, and rich mixtures push unburned fuel into the exhaust. The converter lights that fuel off and bakes itself in the process. Repeated overheating melts passages and creates the restriction that limits flow later. Fixing misfires quickly protects the converter. Waiting turns a one hour ignition repair into a converter replacement and possibly oxygen sensor damage.
How Heat and Backpressure Affect the Engine
Excess backpressure changes how an engine breathes. Intake air cannot enter freely because exhaust cannot leave as fast as it should. The engine runs hotter under the hood, which stresses coils, plastic connectors, and rubber hoses. Turbos suffer as well. A restricted exhaust raises turbine inlet temperature and slows spool, which makes the car feel lazy off the line. In severe cases, heat travels back to the exhaust manifold and can crack it. That kind of damage is common when a converter is heavily restricted.
Dashboard Lights and Codes That Point to the Issue
A converter that has lost efficiency will often set a code that compares upstream and downstream oxygen sensor activity. You might see a P0420 or a related efficiency code. A partially clogged unit is trickier. The computer may not set a code until backpressure becomes extreme. In those cases, you may see fuel trim numbers drift rich at higher loads, or the knock system pulls timing because the engine is running hotter than normal. Stored data and a careful road test help connect those dots.
Simple Tests Technicians Use to Confirm a Restriction
Backpressure testing tells the story without guesswork. One method involves removing an upstream oxygen sensor and installing a pressure gauge to measure restriction while the engine is held at a set rpm. Another method uses a low range gauge at the air injection port if equipped. Excess pressure at modest rpm confirms a blockage. Infrared temperature readings across the converter help too. A healthy unit will show a hotter outlet than inlet during normal operation. A much hotter inlet suggests the brick is restricted and heat cannot pass through.
Other Problems That Mimic a Clogged Converter
Not every loss of power is a converter. A weak fuel pump, a clogged fuel filter, or a collapsing intake hose can create similar symptoms. A slipping transmission can also feel like a breathing problem. That is why testing matters. If fuel pressure holds steady under load and transmission data looks normal, attention turns to the exhaust. A brief test drive with the upstream sensor removed can also reveal a change. If power returns with that temporary vent, restriction is likely.
Driving Risks Once a Converter Starts to Plug
Short trips may remain possible for a while, but the window closes as restriction grows. The engine will run hotter, oil ages faster, and the risk of damage to manifolds and heat shields increases. If the honeycomb breaks apart completely, pieces can migrate and block the outlet unexpectedly. That can create a sudden stall that will not restart. Continuing to drive when power drops under load is not worth the risk to the rest of the exhaust and the engine bay.
How to Prevent Repeat Converter Failures
Converters fail from age, but most early failures begin with upstream problems. Keep ignition parts current so misfires are rare. Repair intake leaks that lean out mixtures and overheat exhaust valves. Fix coolant or oil leaks that reach the exhaust, since contamination can coat the catalyst. Use the exact fuel and oil grade the manufacturer recommends. If your engine has direct injection, keep up with maintenance that prevents heavy carbon buildup, which can contribute to hot spots and misfires.
Repair Options When Replacement Is Needed
On many vehicles the converter is part of a larger pipe assembly. Quality matters because cheap units may not light off properly or may not last. Sensors near the converter should be inspected and replaced if contaminated or slow to respond. Exhaust gaskets and hardware deserve attention so new leaks do not appear. After replacement, the root cause should be addressed, whether that was a misfire, a leaky injector, or an engine that ran rich due to a sensor fault. That is how the new unit stays healthy.
